Item |

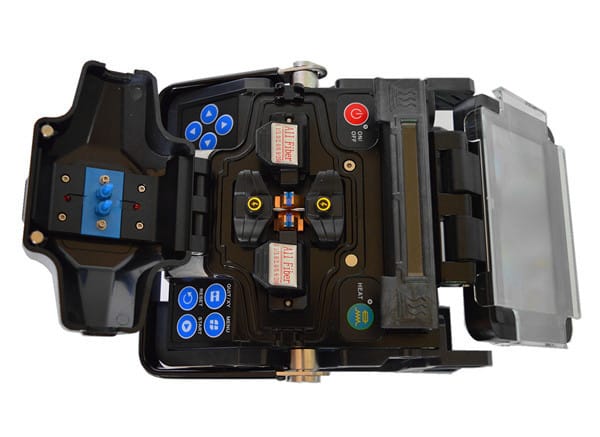

Fusion Splicer Machine |
|
Applicable Fiber Type |
SM MM DS NZDS |
|
Applicable Fiber Count |
Single |
|
Applicable Fiber Diameter |
Cladding diameter of 125um coating diameter 250 ~900um |
|
Splice Mode |
Stored 40 groups 80 groups of user-defined |
|
Average Splice Loss |
0.01dB(SM)0.005dB(MM)0.04dB(DS)0.04dB(NZDS) |
|
Return Loss |
More than 60dB |
|
Connecting Time |
9 sec(Typical time) |
|
Splice Loss Evaluation |
It has |
|
Tensile Test |
2N |
|
Screen |
4.3 in. color LCD English Chinese French Spanish PortugueseRussian etc. |
|
Optical Magnification |
X / Y: 115 times X or Y: 230 times |
|
Power Supply |
11.1V lithium battery 13.5V/5A power adapter 12V vehicle power supply |
|
Battery |
Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h can be reused 500 times |
|
Maximum Storage |
5000 set of the latest record storage |
|
Data Interface |
USB2.0 |
|
Operating Environment |
Altitude 0 ~ 4000m 0 to 95% relative humidity temperature -10 ~ 55degree the maximum wind speed 15m/s |
|
Storage Conditions |
0 to 95% relative humidity -40 ~ 80°C (except battery) -10 ~ 30°C (battery) |
|
Weight |
1.54kg (without battery) 1.82kg (including battery) |
|
Corrosion Resistance |
Device components spare parts and materials used meet corrosion requirements fluid contamination from erosion |
|
Size |
150D*130W*126H(mm) |
|
Packing |
New waterproof drop more than can be heavy 300KG |
|
Main Unit |
1pcs |
|
Fiber Cleaver |
1pcs |
|
Insulated Fiber Stripper |
1pcs |
|
Miller Stripper |
1pcs |
|
Spare Electrodes |
1 pair |
|
Cooler |
1pcs |
|
Tweezers |
1pcs |
|
Alcohol Bottle |
1pcs |
|
Fiber Holders |
Universal Fiber Holders (0.25mm 0.9mm2.0mm 3.0mm 3.1mm) |
|
Carrying Suitcase |
1pcs |
|
AC Adaptor |
1pcs |
|
Blower(dustproof) |
1pcs |
|
Specifications |
1pcs |
